| Place of Origin: | Guangdong China |
| Brand Name: | Jrace |
| Certification: | IAAF,ITF,ISO9001,ISO14001 |
| Model Number: | SW Tracks |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Barrel Packing |
| Delivery Time: | 7 Days After receiving deposit |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50000 Ton Per Year |
| Sport: | Running Track | Material: | Silicon PU |
|---|---|---|---|
| Thickness: | 13MM Or Customized | Color: | Customized |
| Application: | Outdoor | Wear Resistance: | Excellent |
| Sample: | Available | Oversea Installation: | Available |
| High Light: | rubber track and field,all weather tracks |
||
Spray Coating Athletic Track And Field Surface For Running Track Surface
1. Product Application

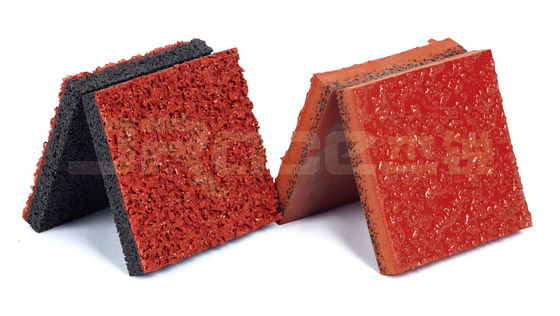

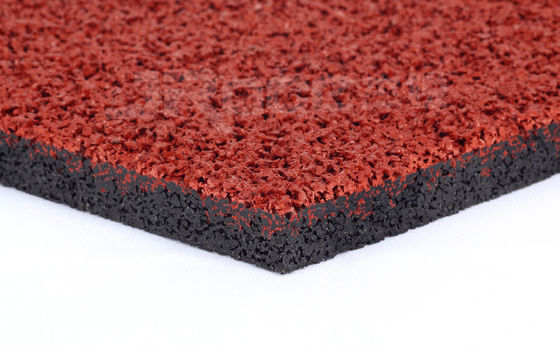

Structure:SBR layer (10mm )+ EPDM top coat (3mm)
Color:red, green or blue
User: School ,Stadium
Thickness:13 mm
Main material:usage≥11kg(No 103 special glue primer,SBR,EPDM,top coat material)
Auxiliary material:pu binder resin,hardener
Base:concrete base,asphalt base
Limitation:the athletic can’t wear spikes on the tracks
Lifespan:8years
It is comment and economic type, it is easy to apply, no bubble
2. Main Features
1>.Comfort : Due to the buffer coat , the floor is very comfortable to play on compared to the commonly used hard court solutions.
2>.Safety:With its renown ,durable silicon PU top finish with its well-balanced friction/sliding properties, the comfort court offers safety for the players at all time.
3>.Seamless design:70% of all floor failures start with a seam,;so no seams ,no porous, no problem
4>.Closed Surfaces:No dirt or bacterial can penetrate the floor, very easy to clean ,very hygienic.
5>.Multisport use: The surface makes it suitable to play all kinds of ball games ,including tennis,basketball,badminton,volleyball, and fustal
6>.Every design is possible :Including using more colours in one floor or inserting a sports club logo in the floor.
7>.Excellent UV resistance :This ensures a surface with the same appearance for years and years after installation.
8>.Asphalt or Concrete sub-base: Both are suitable for silicion PU comfort court ,there are no limitations when you choose to install a silicon PU Comfort Court system.
| Thickness(mm) | 13 |
| Force Reduction % | 36.0 |
| Vertical Deformation mm | 1.30 |
| Skid Resistance BPN20°C | 53 |
| Tensile strength MPa | 0.56 |
| Elongation at Break % | 51.7 |
| Flame Retardance | 1 |
| Test Conclusion | Pass GB/T22517.6-2011;GB/T14833-2011 |
3. Installation step

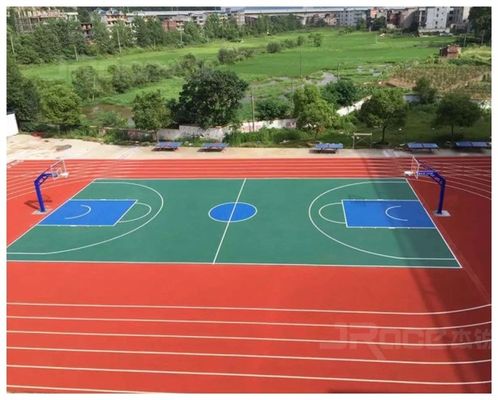

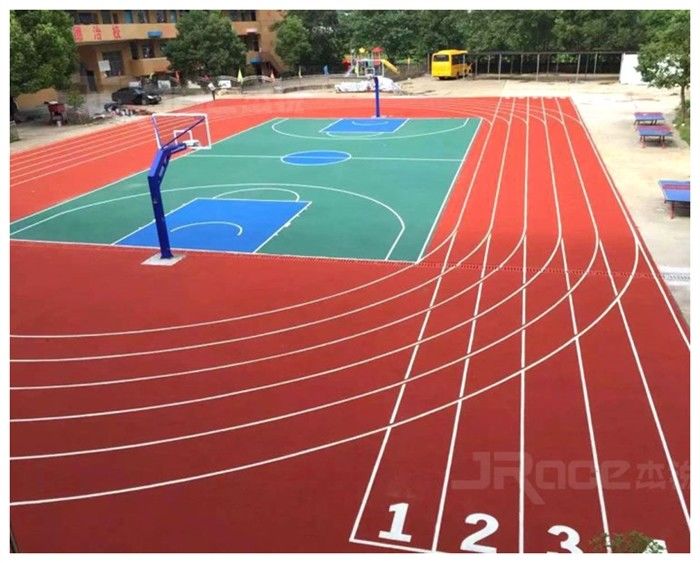

4. Our cases
