| Place of Origin: | Guangdong,China |
| Brand Name: | JRace |
| Certification: | CE, ITF, ISO |
| Model Number: | SCS |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | barrels or drums |
| Delivery Time: | within 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50,000 Tons per Year |
| Material: | Silicon Polyurethane | Sports: | Basketball, Tennis, Volleyball, Badminton |
|---|---|---|---|
| Thickness: | 3mm 4mm 5mm Or Customized | Color: | Red, Green, Blue, Yellow, Gray Or Customized |
| Application: | School, Stadium | Service: | Overseas Construction |
| High Light: | outdoor play surfaces,indoor sport court flooring |
||
Indoor & Outdoor Sport Court Surface Synthetic Rubber Material Silicon Polyurethane System
1. Product Application
SPU/SILICON PU material is develop from tradictional PU sports flooring material. After the polyurethane and organosilicon were scientifically composited, it result in new generation sports flooring material---silicon pu which is effectively compensate for the shortcomings of traditional PU materials. Compare to PU, silicon pu has a longer service life, easy to install, environmentally-friendly and easy to maintain.
2. Installation:
1. Silicon PU primer: primer evenly 1 time
2. Cushion layer :SBR with binder in different thickness
3. Silicon PU sealer :Seal SBR layer
4. Silicon PU self leveling layer : squeeze 1-3 times to sub-base
5. Silicon PU topcoat: topcoat spray 2 times
6. Line paint : according to playing court standard.
3. Main Features
1>. Comfort : Due to the buffer coat , the floor is very comfortable to play on compared to the commonly used hard court solutions.
2>. Safety: With its renown ,durable silicon PU top finish with its well-balanced friction/sliding properties, the comfort court offers safety for the players at all time.
3>. Seamless design: 70% of flooring failures start with a seam, so no seams means no porous and no problem.
4>. Closed surfaces: No dirt or bacterial can penetrate the surfacing, very easy to clean ,very hygienic.
5>. Multisport use: The surface makes it suitable to play all kinds of ball games including tennis, basketball, badminton, volleyball, fustal etc.
6>. Free design: You can choose multi colours as flooring paints or require customized logo on the court.
7>. Excellent UV resistance: It ensures the surface to keep same appearance for years and years after installation.
8>. Asphalt or concrete sub-base: Both are suitable for silicion PU sports court.
4. Physical Property
| Decription | Test Index | Data | ||||||
| Color | Green color liquid | Green color liquid | ||||||
| Viscosity(25℃,mpa·s) | 4000-7000 | 5000-7000 | ||||||
| Leveling Time | 25℃≥20min | 25min(plus2% water) | ||||||
| Tensile Strength | 23±2℃≥1.5MPA | 2.3–2.8 | ||||||
| Elongation at Break | 23±2℃≥400% | 750–850 | ||||||
| Tear Strength | 23±2℃≥12KN/m | 15.77 | ||||||
| Solid Content | ≥80% | 91% | ||||||
| Resin Content | – | 31% | ||||||
| Usage(kg/Sqm/mm) | – | 1.2–1.5 |

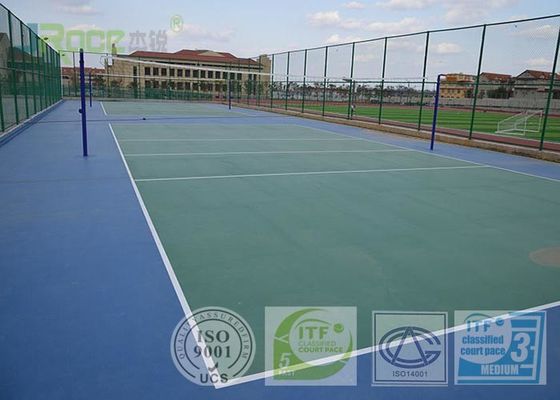

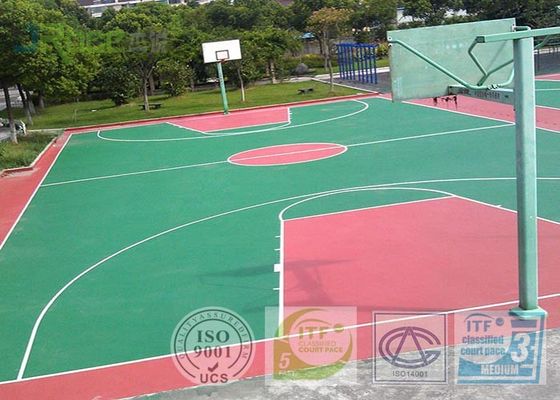

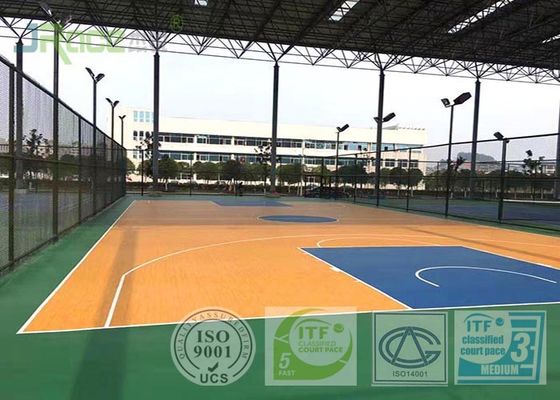

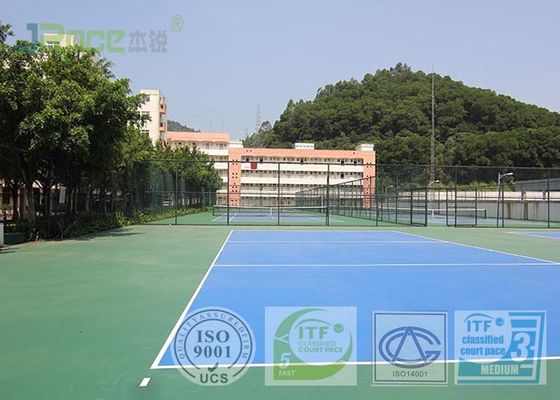

4. Project case
