Environmentally - Friendly Polyurethane Track Surface Red Or Customized

    • Environmentally - Friendly Polyurethane Track Surface Red Or Customized
    • Environmentally - Friendly Polyurethane Track Surface Red Or Customized
  • Environmentally - Friendly Polyurethane Track Surface Red Or Customized

    Product Details:

    Place of Origin: China
    Brand Name: JRace
    Certification: IAAF, ISO
    Model Number: JRace

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 Square meters
    Price: USD10-20 per square meter
    Packaging Details: Packed in barrel
    Delivery Time: 10 days after advance payment
    Payment Terms: L/C, T/T
    Supply Ability: 50000 Ton per year
    Contact Now
    Detailed Product Description
    Material: PU Thickness: 13MM
    Surface Color: Red Or Customized Installation Time: About 40days
    Environment: Our Goods Do Not Harm To Environment

    IAAF Certificated 13mm Thickness Polyurethane Track Surface With Red Color



    1.good quality athletics tracks surfaces
    2.Thickness: 13-15mm running track
    3.green product, factory price
    4.IAAF Certification



    Product Description

    Appropriate elasticity, good shock absorption

    Use environmentally-friendly materials, the specifications of the courts suitable for long-term trainning and competition.

    Good anti-aging,wearing resistance and weather resistance.



    Product Performance



    Material Name Item Group A Group B
    1:4 PU primer Color transparent/light yellow color liquid red color liquid
    Viscosity(25℃,mpa s) 500-1500 15000--22000
    Solid Content(%) ≥99 ≥99
    Mixture Group A:GroupB:Hardener=1:4:0.04--0.08
    Pot life(25℃, min) ≥60
    Surface dry time(25℃,h) ≤8
    the whole system dry time(25℃,h) ≤16
    Hardness JIS A 45-50
    Tensile strength(Mpa) ≥1.5
    Elongation at break ≥150
    Flammability Bf1-S
    1:2 PU top coat Color transparent/light yellow color liquid red color liquid
    Viscosity(25℃,mpa s) 500-1500 15000--22000
    Solid Content(%) ≥99 ≥99
    Mixture Group A:GroupB:Hardener=1:2:0--0.02
    Pot life(25℃, min) ≥60
    Surface dry time(25℃,h) ≤4
    the whole system dry time(25℃,h) ≤8
    Hardness JIS A 50-70
    Tensile strength(Mpa) ≥3
    Elongation at break ≥250
    Flammability Bf1-S

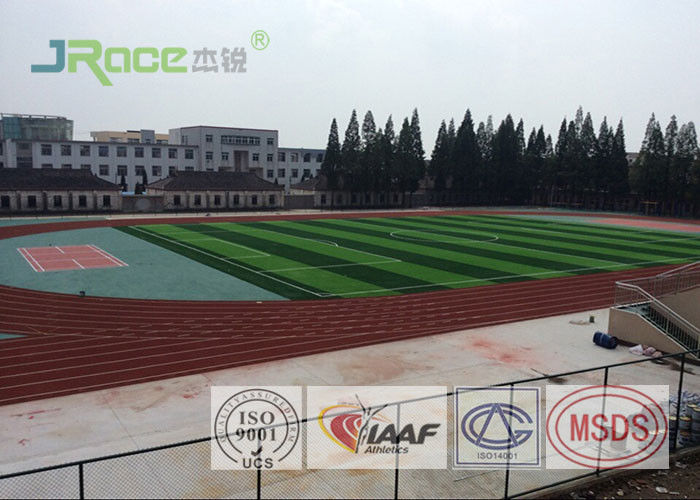

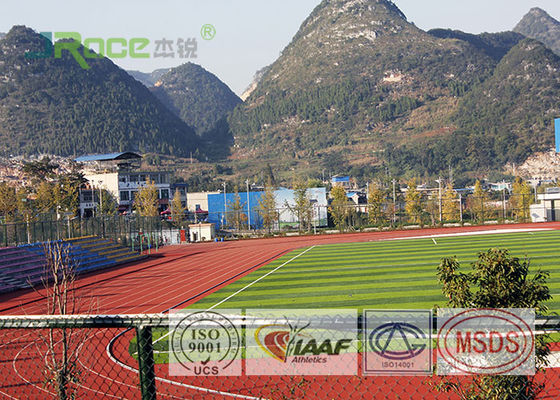

    Part of cases



    Environmentally - Friendly Polyurethane Track Surface Red Or Customized



    Environmentally - Friendly Polyurethane Track Surface Red Or Customized



    Product Package



    Item Specification
    No.103 Glue Binder 20kg/200kg/barrel
    EPDM 25kg/bag
    SBR Granule 25kg/bag
    Top Coat A 15kg/200kg/barrel
    Top Coat B 30kg/300kg/barrel



    FAQ

    Q:What is the Production time?

    A:It is about 10 days.

    Q:What are the options for the base construction of a running track.?

    A:The ground is based on asphalt or concrete.

    Q:What is the life Span for Running track?

    A:The life span is about 10years.

    Q:I am Interested in Synthetic track surface,what is the best choice?

    A: Running track surfaces are produced on site with combinations of either latex or polyurethane binder and rubber. Best choice of surface will take into account use, performance requirepemtns, budget, and life cycle costs. Except for the full solid pour systems which vary in depth, The standard colors are trakc red and black although other colors are available at additional cost. Spray Coating is a porous system consisting of a paved base mat of binder and black rubber with 2 structural spray coats to pvovide wear and UV protection. Running track sandwich System with the paved base mat covered by top layer of solid-pour polyurethane and rubber.
