Sandwich System Running Track And Field Surface Coating For Stadium

Sandwich System Running Track And Field Surface Coating For Stadium

    • Sandwich System Running Track And Field Surface Coating For Stadium
    • Sandwich System Running Track And Field Surface Coating For Stadium
    • Sandwich System Running Track And Field Surface Coating For Stadium
  • Sandwich System Running Track And Field Surface Coating For Stadium

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jrace
    Certification: IAAF,ITF,ISO9001,ISO14001
    Model Number: Jrace

    Payment & Shipping Terms:

    Minimum Order Quantity: 100sqm
    Price: Negotiable
    Packaging Details: Barrel Packing
    Delivery Time: 7 Days After Payment
    Payment Terms: T/T, L/C
    Supply Ability: 50000 Ton Per Year
    Contact Now
    Detailed Product Description
    Sport: Running Track Flooring Material: Silicon PU And EPDM
    Thickness: 13mm Or Customers Color: Green, Blue,Red Or Others
    Product Name: Running Track Color Fastness: Excellent
    System: Multi-System Voc Content: Solvent Free
    Foundation: Cement / Asphalt Application: Runway , Track & Field Flooring

    Sandwich System Running Track And Field Surface Coating For Stadium

    1. Product Application

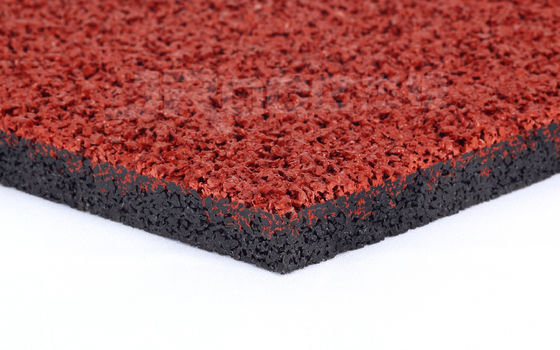

    Structure:SBR layer (10mm )+ EPDM top coat (3mm)
    Color:red, green or blue
    User: School ,Stadium
    Thickness:13 mm
    Main material:usage≥11kg(No 103 special glue primer,SBR,EPDM,top coat material)
    Auxiliary material:pu binder resin,hardener
    Base:concrete base,asphalt base
    Limitation:the athletic can’t wear spikes on the tracks
    Lifespan:8years
    It is comment and economic type, it is easy to apply, no bubble



    It is in the structure of natural granule surface laid for multiple layers, and it is waterproof, highly elastic and designed in dynamic. The base layer is coated mechanically once mixed with the PU adhesive and the special granule for track as highly flat. Once the surface layer is scratched and filled, it is formed once sprayed with the granule.



    Its construction is attracted with the process for both types of traditional and vent for track with their advantages.Suitable for large stadiums and schools.



    2. Main Features



    1>.Comfort : Due to the buffer coat , the floor is very comfortable to play on compared to the commonly used hard court solutions.


    2>.Safety:With its renown ,durable silicon PU top finish with its well-balanced friction/sliding properties, the comfort court offers safety for the players at all time.


    3>.Seamless design:70% of all floor failures start with a seam,;so no seams ,no porous, no problem


    4>.Closed Surfaces:No dirt or bacterial can penetrate the floor, very easy to clean ,very hygienic.


    5>.Multisport use: The surface makes it suitable to play all kinds of ball games ,including tennis,basketball,badminton,volleyball, and fustal


    6>.Every design is possible :Including using more colours in one floor or inserting a sports club logo in the floor.


    7>.Excellent UV resistance :This ensures a surface with the same appearance for years and years after installation.


    8>.Asphalt or Concrete sub-base: Both are suitable for silicion PU comfort court ,there are no limitations when you choose to install a silicon PU Comfort Court system.





    Thickness(mm) 13
    Force Reduction % 36.0
    Vertical Deformation mm 1.30
    Skid Resistance BPN20°C 53
    Tensile strength MPa 0.56
    Elongation at Break % 51.7
    Flame Retardance 1
    Test Conclusion Pass GB/T22517.6-2011;GB/T14833-2011



    IAAF track design

    Sandwich System Running Track And Field Surface Coating For Stadium

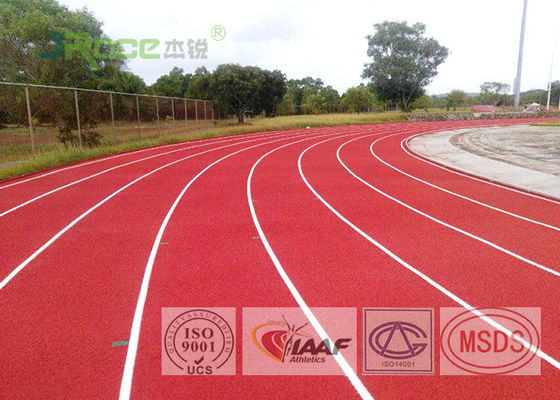

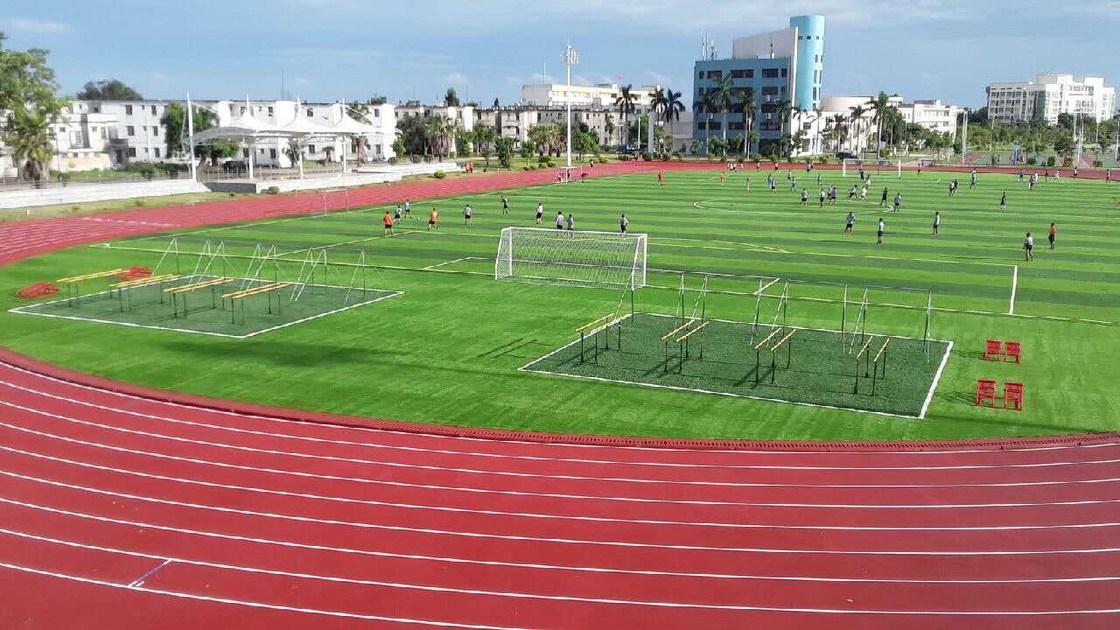

    Installation Cases



    Sandwich System Running Track And Field Surface Coating For Stadium



    Sandwich System Running Track And Field Surface Coating For Stadium



    Sandwich System Running Track And Field Surface Coating For Stadium

    Installation step

    Sandwich System Running Track And Field Surface Coating For Stadium
