Professional SPU Sport Court Flooring Shock Absorption For Games Area

    • Professional SPU Sport Court Flooring Shock Absorption For Games Area
    • Professional SPU Sport Court Flooring Shock Absorption For Games Area
    • Professional SPU Sport Court Flooring Shock Absorption For Games Area
    • Professional SPU Sport Court Flooring Shock Absorption For Games Area
  • Professional SPU Sport Court Flooring Shock Absorption For Games Area

    Product Details:

    Place of Origin: GuangDong China
    Brand Name: Green Grass
    Certification: ITF 5
    Model Number: CD 001 / CD101 / CD102 / CD 002

    Payment & Shipping Terms:

    Minimum Order Quantity: 100sqm
    Price: Negotiable
    Packaging Details: Barrel
    Delivery Time: 7 Days after deposit
    Payment Terms: T/T, L/C
    Supply Ability: 50000 Tons / Per Year
    Contact Now
    Detailed Product Description
    Material: Silicon PU Thickness: 3-8mm
    Color: Dark Red / Jade Green / Olympic Blue / Bright Red Surface Hardness ( Shore A ): 36
    Ball Rebounce: 99.10% Gloss: Pass
    TDI.HDI: Not Detected UV Test Under 168h: 3.2MPA
    Friction: 105 Flexibility At Low Temperature: No Crack

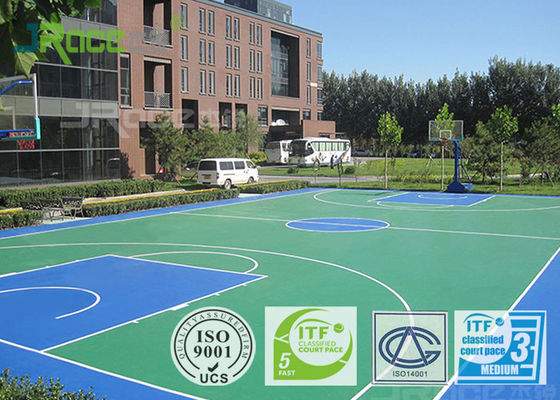

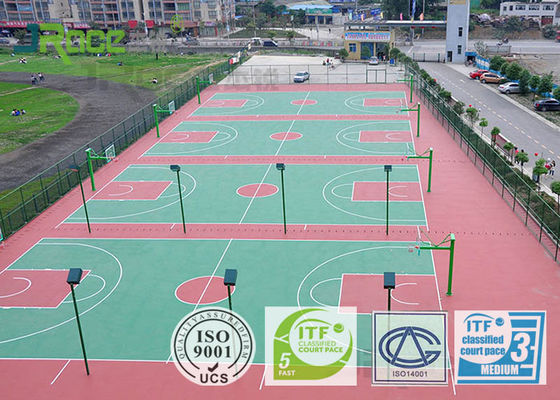

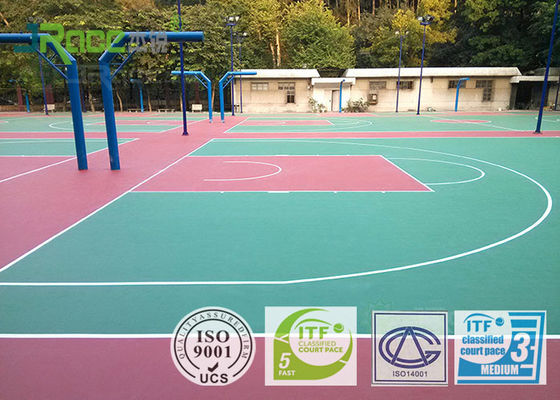

    Shock-Absorption Spu Basketball court Material Sport Court Coating





    1. Concrete requirements



    1) Compactness: Refer to the concrete building strength standard (C25 /4000PSI)

    2) Flatness: Using 3m ruler to measure, the error is not more than 3mm.

    3) Slop: Ensure the drainage,Horizontal slop is not more than 5‰, Vertical slop is not more than 3‰.

    4) Maintenance: The new concrete should maintain no less than 28days, the first 7days should pour water conservation.

    5) Crack: the new concrete must cut after pouring water conservation, each part size should be 6X8m. the crack width should be 6~8mm,the depth is not less than 30m

    Note: It suggest to build the new concrete ,in case of the old concrete sink ,deformation,or crack too much. the new concrete thickness should be ≥ 80mm.



    2.Concrete base processing



    1) Cut : The normal crack in right-angle, please cut it in V shape with width in 40- 50mm,the depth in 20mm



    2) Wash: Polish the convex and the loose. Clean the floor by water and dilute hydrochloric acid

    (concentration: 5~8%) ; Before the next step, ensure there is no dilute hydrochloric acid and the floor is dry.

    Note: Marking down the ponding when cleaning, Some projects clean only by water.

    If possible, we suggest to polish the base .



    3) Primer : Before primer, the concrete base must be totally dry.

    Feature: in order to seal the concrete hole, then after buffer coat, it is not easy to delaminating and bubble.

    Mixture: open the drum and apply directly, mix nothing.

    Tool: Roller brush



    4) Caulk : ( After the primer dry, then caulk. )

    Tool: Trowel

    Buffer coat mixture: 1kg buffer coat (Label: CD002) +0.05—0.1kg water.

    Crack ller mixture: 1 kg crack ller (Label: CD201) +0.02—0.05kg water.







    Professional SPU Sport Court Flooring Shock Absorption For Games Area





    Professional SPU Sport Court Flooring Shock Absorption For Games Area





    Professional SPU Sport Court Flooring Shock Absorption For Games Area
